CNC lathe

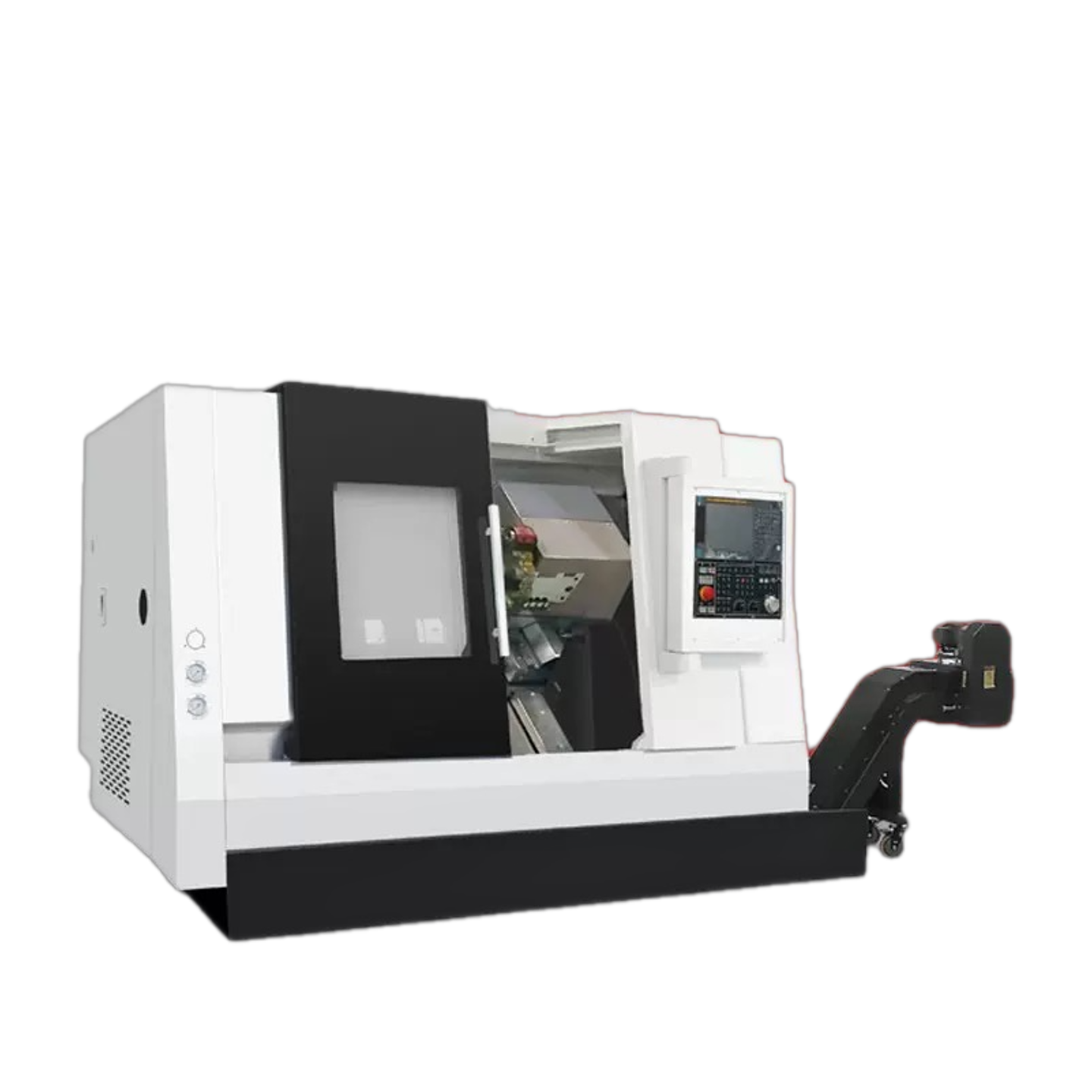

TCK56Y-BMT40 CNC horizontal lathe is a brand-new product designed and produced based on our factory’s many years of experience in designing horizontal CNC lathes and in line with market and development needs. The main performance indicators of this product have reached the international advanced level, with ultra-high precision and stability, and a high-rigidity structure with large cutting volume feed, allowing customers to obtain high-efficiency, low-cost, and pure German machine tools.
This machine tool can process shaft and disc parts.In addition to the functions of CNC lathes, it can also complete plane milling, drilling, tapping, straight groove, spiral groove and gear milling, etc. It has composite functions such as turning, milling and boring, and can realize the processing concept of one-time clamping and full completion., and can process rotating parts efficiently, in large quantities, and with high precision. The rigidity of the spindle, bed, tailstock and other components is reasonably matched in the design, which greatly improves the rigidity of the whole machine and ensures the stability during heavy cutting. Therefore, the external circle precision of this machine tool can reach IT6~IT7 level. As a general-purpose machine tool, it is particularly suitable for the high-efficiency, large-scale, and high-precision processing of rotating parts in the locomotive, aerospace, military and other industries.
The machine tool adopts mechanical, electrical and hydraulic integrated structure, with a compact and reasonable overall layout, easy to repair and maintain, and has the characteristics of high efficiency, high precision and high rigidity. Key purchased parts are purchased through bidding, and products from well-known domestic and foreign manufacturers are selected to ensure the high reliability of the machine tool. The whole machine adopts a fully enclosed protection structure, and the appearance conforms to the principles of ergonomics, is pleasant and easy to operate.
Description
The X-axis and Z-axis are driven by servo motors and are directly connected to the ball screws through elastic couplings. The ball screws are installed with both ends fixed.
The guide rails of both axes are rolling guide rails, which are four-way equal load type, with high precision and large load. The balls are separated by cages to reduce friction resistance, temperature rise and thermal deformation during rapid movement, thereby greatly improving processing accuracy, rapid movement speed and production efficiency. Its outstanding advantages are small size, high precision and low maintenance cost. It is the preferred configuration for users who pursue high precision and high cost performance, and is particularly suitable for occasions such as automobiles and bearings that require high consistency of part size.
This series of machine tools is an electric spindle spindle box. The electric spindle is directly driven by a built-in motor, so it has the characteristics of compact structure, light weight, low noise, low vibration, small moment of inertia, etc. It can be started and stopped quickly at high speed, acceleration, and fixed angle, and has good dynamic accuracy and stability, which can meet the needs of high-speed cutting and precision machining of CNC machine tools; because the intermediate speed transmission device is omitted, there is no external force in the intermediate transmission link, the dynamic load on the electric spindle is small, and its precision life is extended; the electric spindle adopts AC frequency conversion and vector control technology, so it can achieve stepless speed change within the rated speed range to meet the needs of various working conditions and load changes when the machine tool is working.
