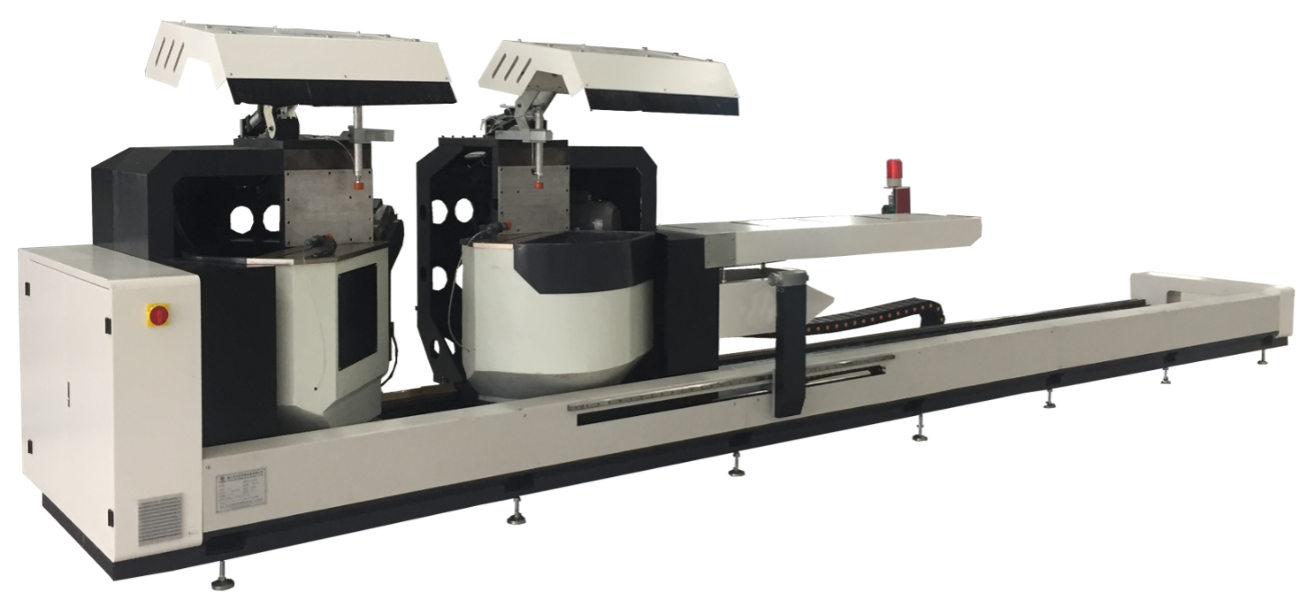

CNC Compound Angle Double Head Saw
CNC Compound Angle Double Head Saw
1. Equipment use:
1. Mainly used for cutting industrial profiles, aluminum alloy curtain wall materials, window materials, and can also be used for cutting plastic profiles.
The working table and saw blade can be adjusted to any angle.
2. Use carbide saw blades with a maximum outer diameter of 650mm, high linear speed and high processing precision.
3. This machine tool adopts the British Cuiou controller, the CNC system with arbitrary rotation of the worktable and arbitrary swing angle of the saw blade, and an enlarged 4KW special motor.
4. With unique length and angle accuracy compensation function, the length and angle positioning dimensions are accurate, which is more suitable for the cutting of industrial profiles, aluminum curtain wall materials of oversized sizes and various arbitrary angles, as well as the cutting of aluminum curtain wall compound angles.
Description
Main technical parameters:
1. Cutting length 550-6000mm
2. Cutting width × height (b × h) 310 × 180 mm
350×150mm
3. Main motor power 4.0KW × 2 sets
4. Main motor speed 2840r/min
5. Use saw blade size Φ650×Φ38×140T
6. Saw blade feed speed 0-3m/min
7. Saw blade return speed 2-3m/min
8. Workbench rotation angle 35°～135°
9. The saw blade can swing from 90° to 45°
10. Working air pressure 0.6～0.8Mpa
11. Working voltage 380V
